Power Cord Pull Tester for Tensile Strength, Flexibility & Safety Compliance
The Power Cord Pull Tester is a professional test device designed for cables, power cords, and plug assemblies. It simulates the tensile forces, stresses, and pulls encountered in actual use, ensuring product durability and reliability in accordance with international safety standards.
Product Overview
This device meets UL817 standards, ensuring power plugs remain firmly attached to cords and can withstand sudden pulls without breaking. Our testing equipment performs three critical tests:
- Abrupt pull test (UL 817 clauses 99.1~99.2) - evaluates cord resistance to sudden yanks
- Jacket retention test (UL 817 clauses 100.1~100.3) - verifies outer cord layer stability
- Flexing test (UL 817 clauses 96.1~96.5) - assesses cord flexibility without damage
The equipment operates automatically with preset test counts or durations. It features high accuracy, logical setup, and easy maintenance.
Technical Parameters
| Parameter |
Specification |
| Power supply |
AC 127V / 60Hz |
| Standards |
UL817 |
| Load current |
0~40A adjustable |
| Load voltage |
4~12V |
| Workstation |
6 work stations |
| Test times |
1~9999 |
| Test time |
0-999.9s |
| Loading weights |
2.5 lb, 3 lb, 15 lb (6 pieces of each) |
| Environment |
0～40℃ / humidity ≤85%, no violent shaking, shock, vibration, or corrosive air |
| Dimension |
W*D*H = 930*510*1530mm, 273kg (include weights) |
Maintenance Guidelines
- Remove test samples and weights when not in use, then power down all connected sources
- Handle equipment gently to avoid damage to internal components
- Maintain dry conditions, protecting from liquids, dust, and dampness
- Establish regular maintenance schedule with inspection records
- Replace worn components periodically
- Review user guide before operation for safety and optimal performance
Product Features
- High-precision pull test: simulates sudden pull stress during plugging/unplugging and impacts
- Versatile: tests power cords, plugs, and cable assemblies
- User-friendly: adjustable pull force and quick fixture replacement
- Compliance: meets IEC 60320, IEC 60884, and UL 817 standards
- Stable: rugged construction with highly repeatable results

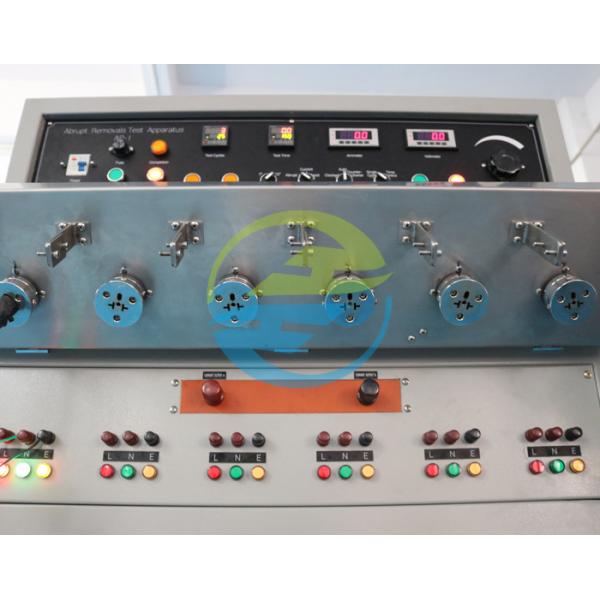

Product Image
